VEGA SQ 20
PRODUCT REFRENCE
ITEM CODE VEGA SQ 20
ENVIRONMENT Indoor
INSTALLATION Recessed
CONSTRUCTION AND MATERIALS

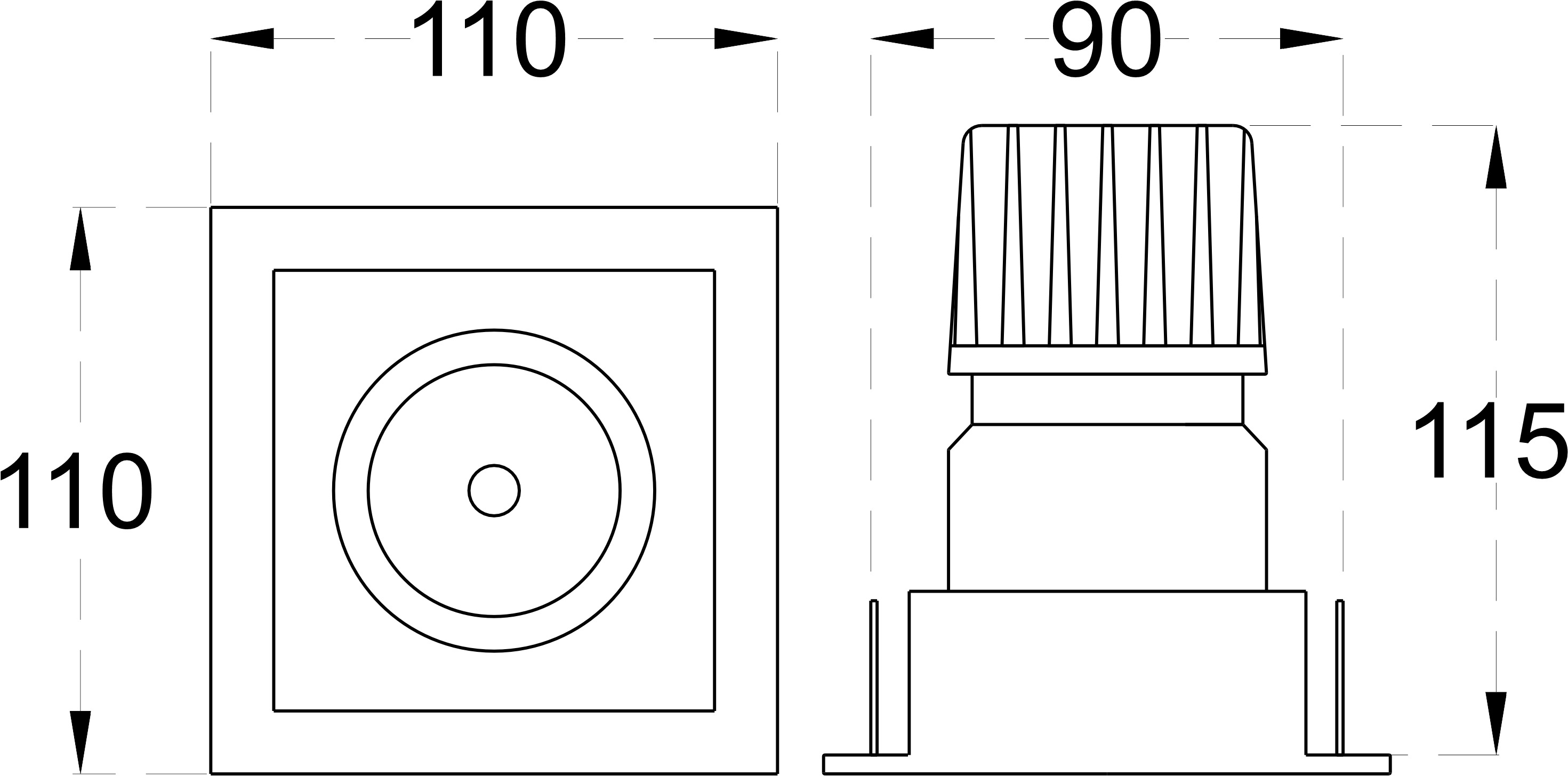

SIZE OUT SIDE MM 110x110
SIZE CUT OUT SIZE (MM) 90x90x115
HOUSING Die Cast Aluminium
LENS / DIFFUSER Tempered Glass
REFLECTOR PC High Purity Metallised
SURFACE FINISH White/Black/Custom Powder Coated
THERMAL MANAGEMENT
HEAT SINK MATERIAL Aluminium
COOLING TECHNIQUE Passive
OPTICAL SYSTEM
BEAM ANGLE 24°,36°
ILLUMINATION MODE Direct Lighting
SWIVEL Yes
LIGHT TECHNOLOGY
LED FITTED Bridgelux
DELIVERED LUMENS 2300 / 2200 / 2100
CCT (K) 6000 / 4000 / 3000
Tunable On Request
LED BINNING 3 Step MacAdam
CRI (Ra) 80 / 90
LED LIFE L70 40,000 HRS
LUMINAIRE LUMINOUS FLUX 3200 / 3100 / 3000
LUMINOUS EFFICACY 115 Lumens / Watt
ELECTRICAL SYSTEM
(UGR) <19
INPUT VOLTAGE 220 TO 240 Vac
INPUT POWER 20W
POWER FACTOR >0.95
THD <10%
CONTROL GEAR MOUNTING Remote
DRIVER PROTECTION OVP,Short Circuit,Surge
DIMMING Phase / Analog / Dali / RF / APP
EMERGENCY BATTERY BACKUP On Request
APPLICATION AREAS: Home,Office buildings,Retail,Sports facilities,Studio, Stage,Supermarkets,liberary
