PLATO SQ 15
PRODUCT REFRENCE
ITEM CODE PLATO SQ 15
ENVIRONMENT Indoor
INSTALLATION Recessed
CONSTRUCTION AND MATERIALS

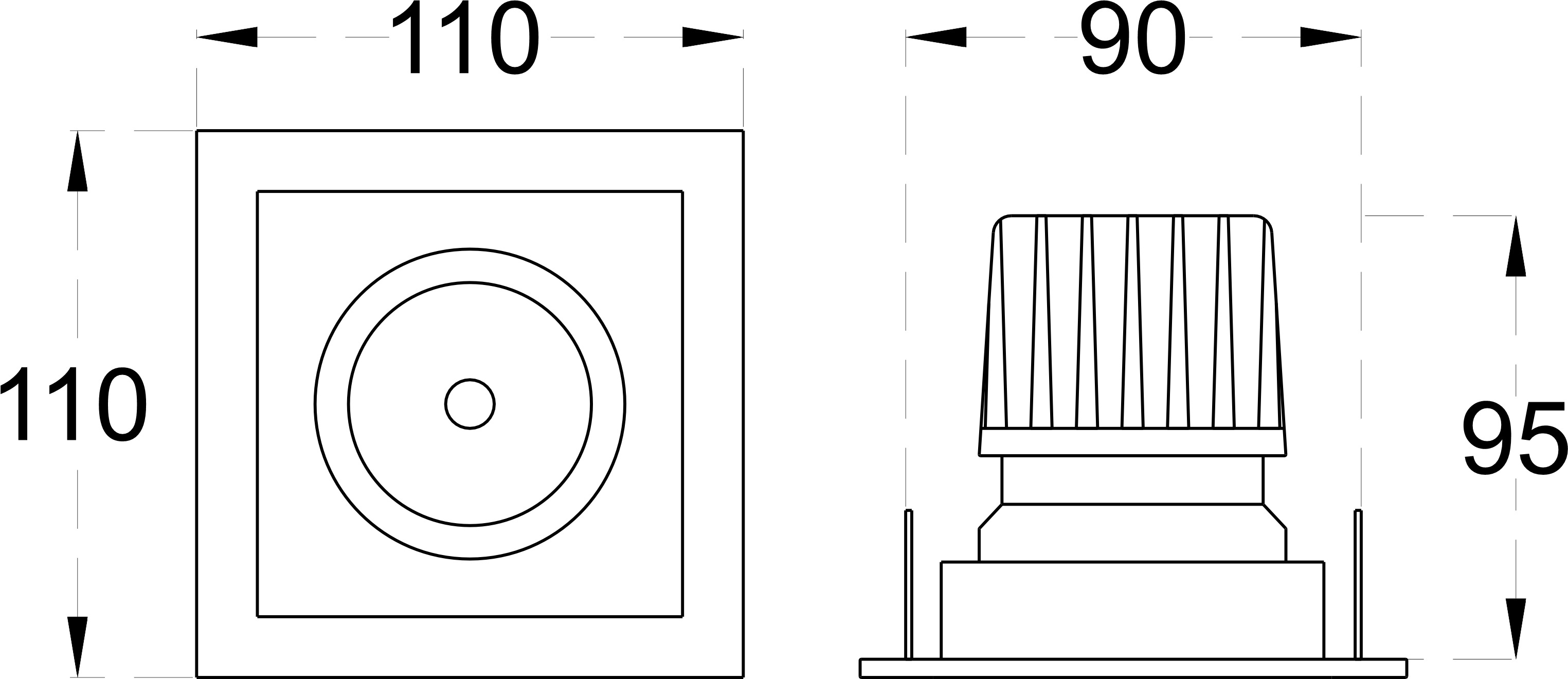

SIZE OUT SIDE MM 110x110
SIZE CUT OUT SIZE (MM) 90x90x95
HOUSING Die Cast Aluminium
LENS / DIFFUSER Tempered Glass
REFLECTOR PC High Purity Metallised
SURFACE FINISH White/Black/Custom Powder Coated
THERMAL MANAGEMENT
HEAT SINK MATERIAL Aluminium
COOLING TECHNIQUE Passive
OPTICAL SYSTEM
BEAM ANGLE 24°,36°
ILLUMINATION MODE Direct Lighting
SWIVEL Yes
LIGHT TECHNOLOGY
LED FITTED Bridgelux
DELIVERED LUMENS 1725 / 1650 / 1575
CCT (K) 6000 / 4000 / 3000
Tunable On Request
LED BINNING 3 Step MacAdam
CRI (Ra) 80 / 90
LED LIFE L70 40,000 HRS
LUMINAIRE LUMINOUS FLUX 2400 / 2325 / 2250
LUMINOUS EFFICACY 115 Lumens / Watt
ELECTRICAL SYSTEM
(UGR) <19
INPUT VOLTAGE 220 TO 240 Vac
INPUT POWER 15W
POWER FACTOR >0.95
THD <10%
CONTROL GEAR MOUNTING Remote
DRIVER PROTECTION OVP,Short Circuit,Surge
DIMMING Phase / Analog / Dali / RF / APP
EMERGENCY BATTERY BACKUP On Request
APPLICATION AREAS: Home,Office buildings,Retail,Sports facilities,Studio, Stage,Supermarkets,liberary
