PANEL RD 24
PRODUCT REFRENCE
ITEM CODE PANEL RD 24
ENVIRONMENT Indoor
INSTALLATION Recessed
CONSTRUCTION AND MATERIALS

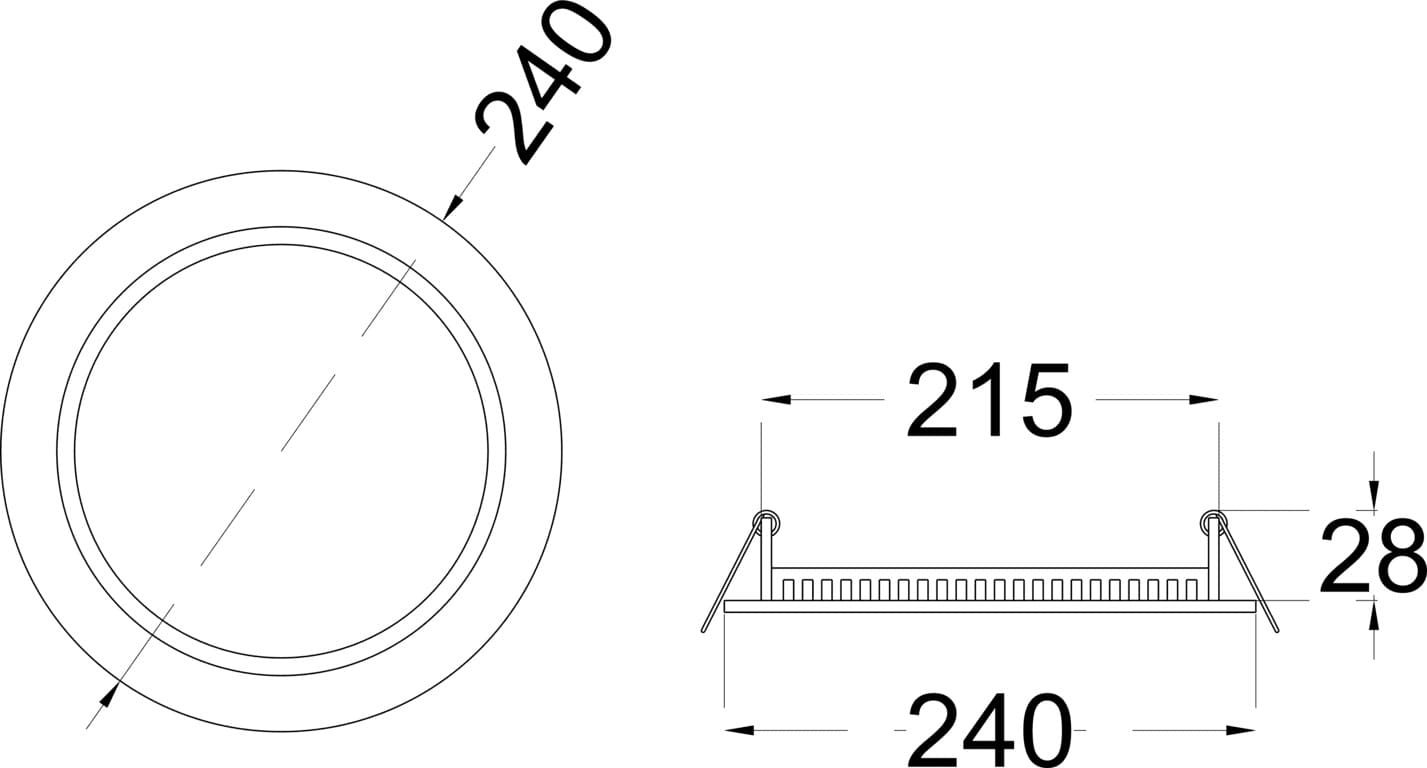

SIZE OUT SIDE MM 240
SIZE CUT OUT SIZE (MM) 215
HOUSING Die Cast Aluminium
LENS / DIFFUSER High Transmission PMMA
REFLECTOR N/A
SURFACE FINISH WHITE POWDER COATED
THERMAL MANAGEMENT
HEAT SINK MATERIAL Aluminium
COOLING TECHNIQUE Passive
OPTICAL SYSTEM
BEAM ANGLE 110°
ILLUMINATION MODE Direct Lighting
SWIVEL No
LIGHT TECHNOLOGY
LED FITTED Bridgelux
DELIVERED LUMENS 2400 / 2280 / 2160
CCT (K) 6000 / 4000 / 3000
Tunable On Request
LED BINNING 3 Step MacAdam
CRI (Ra) 80 / 90
LED LIFE L70 45,000 HRS
LUMINAIRE LUMINOUS FLUX 3360 / 3240 / 3120
LUMINOUS EFFICACY 100 Lumens / Watt
ELECTRICAL SYSTEM
(UGR) <22
INPUT VOLTAGE 220 TO 240 Vac
INPUT POWER 24W
POWER FACTOR >0.95
THD <10%
CONTROL GEAR MOUNTING Remote
DRIVER PROTECTION OVP,Short Circuit,Surge
DIMMING Phase / Analog / Dali / RF / APP
EMERGENCY BATTERY BACKUP On Request
