MOON SURFACE 72 900
PRODUCT REFRENCE
ITEM CODE MOON SURFACE 72 900
ENVIRONMENT Indoor
INSTALLATION Surface
CONSTRUCTION AND MATERIALS

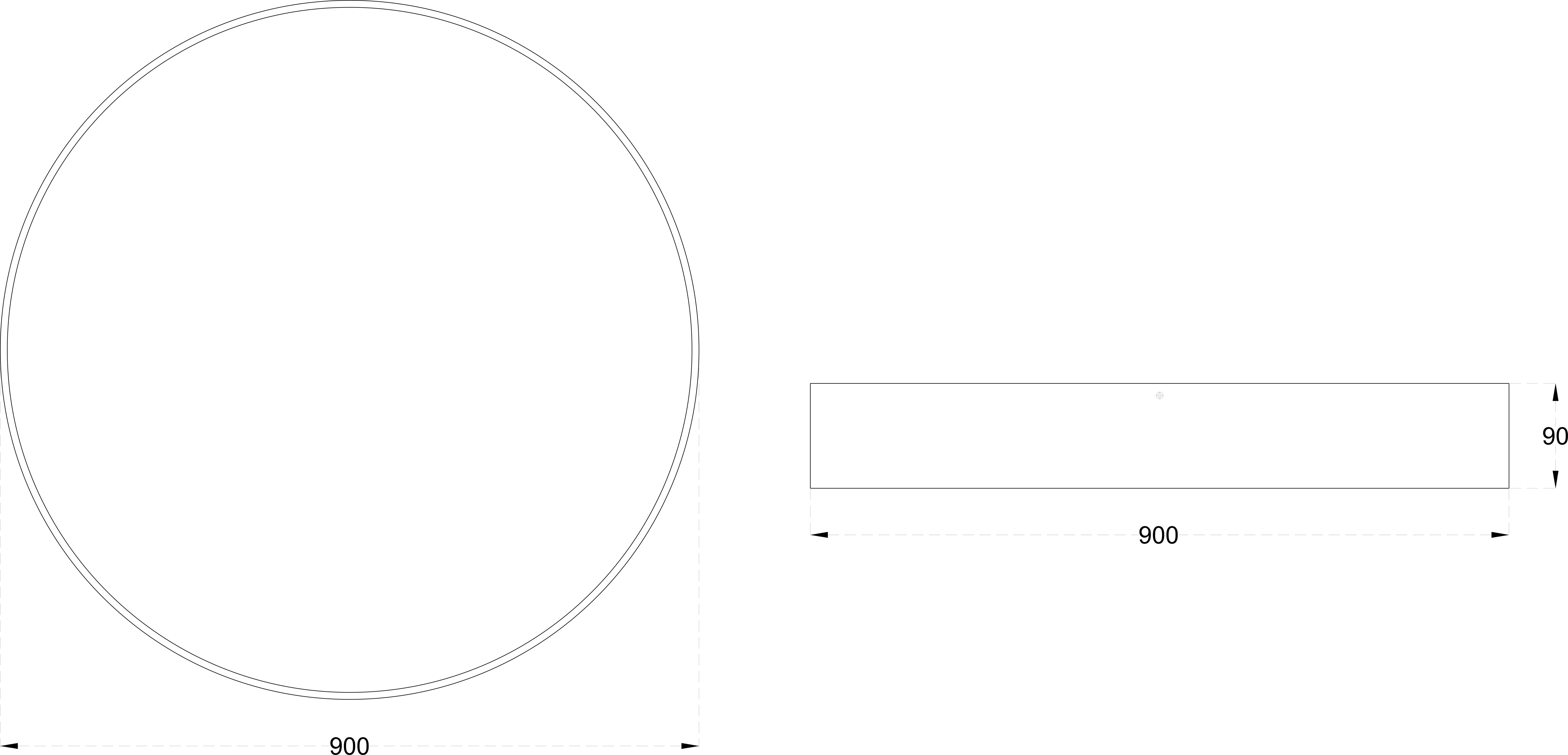

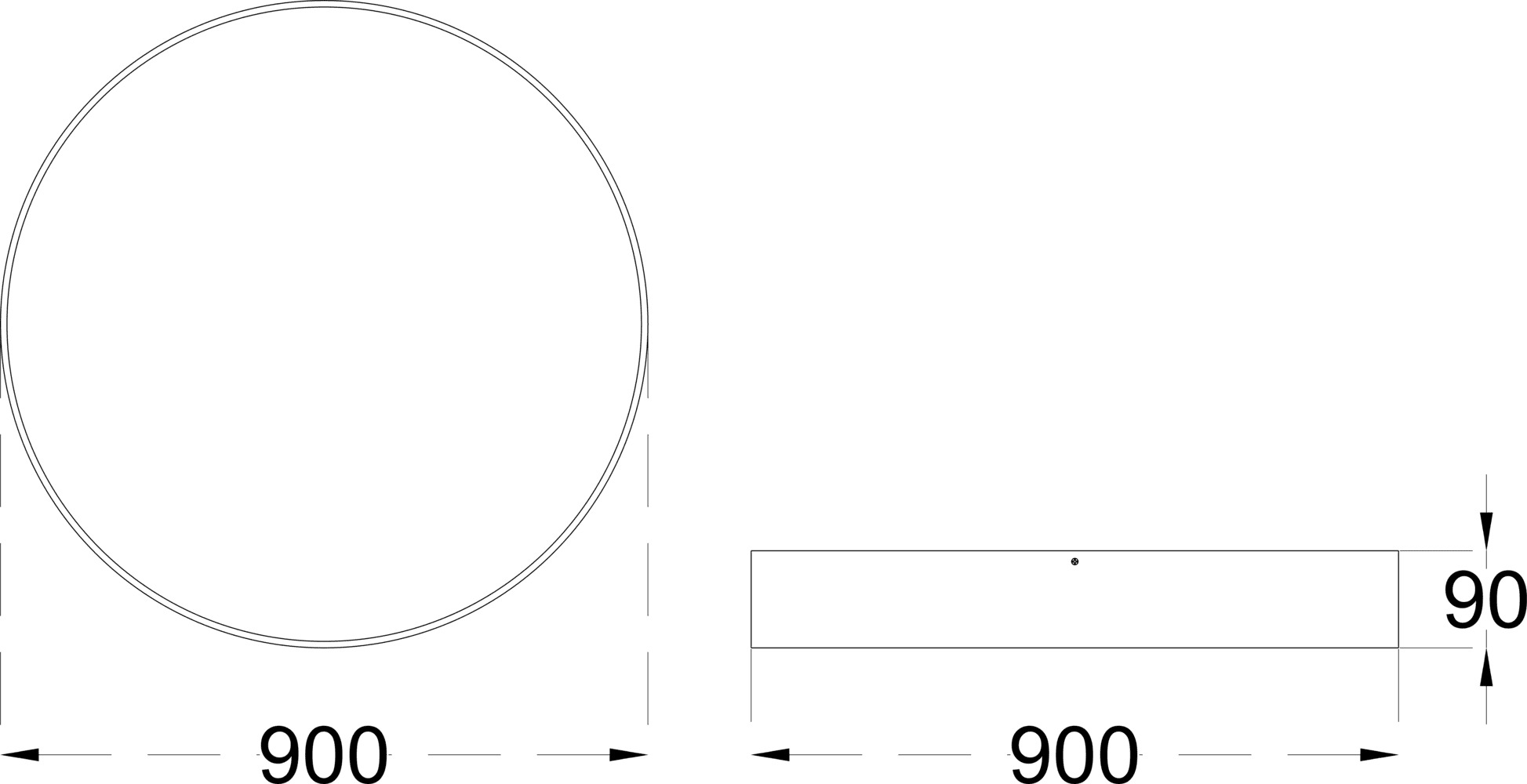

SIZE OUT SIDE MM 900x110
SIZE CUT OUT SIZE (MM) -
HOUSING Extruded Aluminium
LENS / DIFFUSER High Transmission PMMA
REFLECTOR N/A
SURFACE FINISH White/Black/Custom Powder Coated
THERMAL MANAGEMENT
HEAT SINK MATERIAL Aluminium
COOLING TECHNIQUE Passive
OPTICAL SYSTEM
BEAM ANGLE 110°
ILLUMINATION MODE Direct Lighting
SWIVEL No
LIGHT TECHNOLOGY
LED FITTED Bridgelux
DELIVERED LUMENS 7200 / 6840 / 6480
CCT (K) 6000 / 4000 / 3000
Tunable On Request
LED BINNING 3 Step MacAdam
CRI (Ra) 80 / 90
LED LIFE L70 45,000 HRS
LUMINAIRE LUMINOUS FLUX 10080 / 9720 / 9360
LUMINOUS EFFICACY 100 Lumens / Watt
ELECTRICAL SYSTEM
(UGR) <22
INPUT VOLTAGE 220 TO 240 Vac
INPUT POWER 72W
POWER FACTOR >0.95
THD <10%
CONTROL GEAR MOUNTING IN BUILT
DRIVER PROTECTION OVP,Short Circuit,Surge
DIMMING Phase / Analog / Dali / RF / APP
EMERGENCY BATTERY BACKUP On Request
