AERO 15
PRODUCT REFRENCE
ITEM CODE AERO 15
ENVIRONMENT Indoor
INSTALLATION Suspended
CONSTRUCTION AND MATERIALS

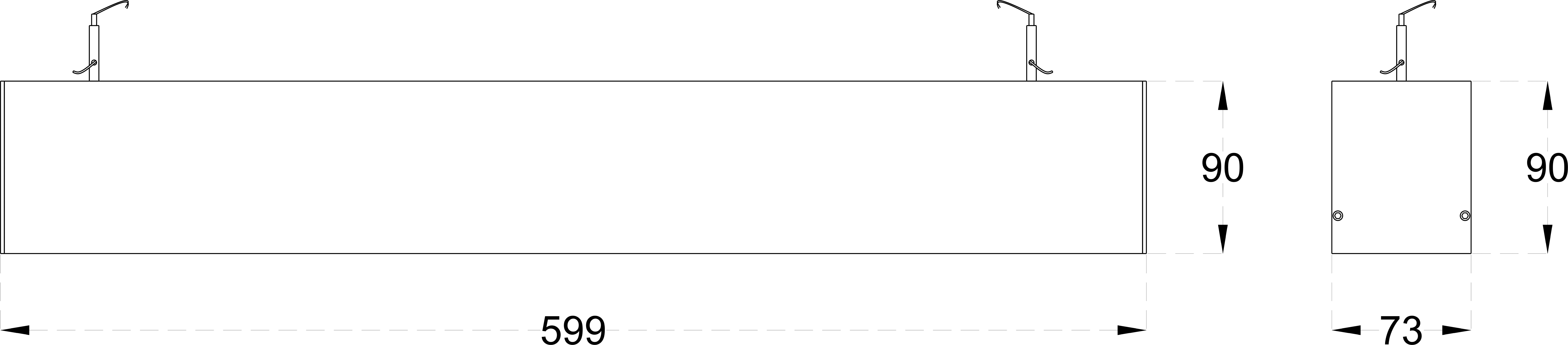

SIZE OUT SIDE MM 595x70x90
SIZE CUT OUT SIZE (MM) -
HOUSING Extruded Aluminium
LENS / DIFFUSER High Transmission PMMA
REFLECTOR N/A
SURFACE FINISH White/Black/Custom Powder Coated
THERMAL MANAGEMENT
HEAT SINK MATERIAL Aluminium
COOLING TECHNIQUE Passive
OPTICAL SYSTEM
BEAM ANGLE 110°
ILLUMINATION MODE Direct Lighting
SWIVEL No
LIGHT TECHNOLOGY
LED FITTED Bridgelux
DELIVERED LUMENS 1500 / 1425 / 1350
CCT (K) 6000 / 4000 / 3000
Tunable On Request
LED BINNING 3 Step MacAdam
CRI (Ra) 80 / 90
LED LIFE L70 45,000 HRS
LUMINAIRE LUMINOUS FLUX 2100 / 2025 / 1950
only fore internal use 140
LUMINOUS EFFICACY 100 Lumens / Watt
ELECTRICAL SYSTEM
(UGR) <22
INPUT VOLTAGE 220 TO 240 Vac
INPUT POWER 15W
POWER FACTOR >0.95
THD <10%
CONTROL GEAR MOUNTING IN BUILT
DRIVER PROTECTION OVP,Short Circuit,Surge
DIMMING Phase / Analog / Dali / RF / APP
EMERGENCY BATTERY BACKUP On Request
